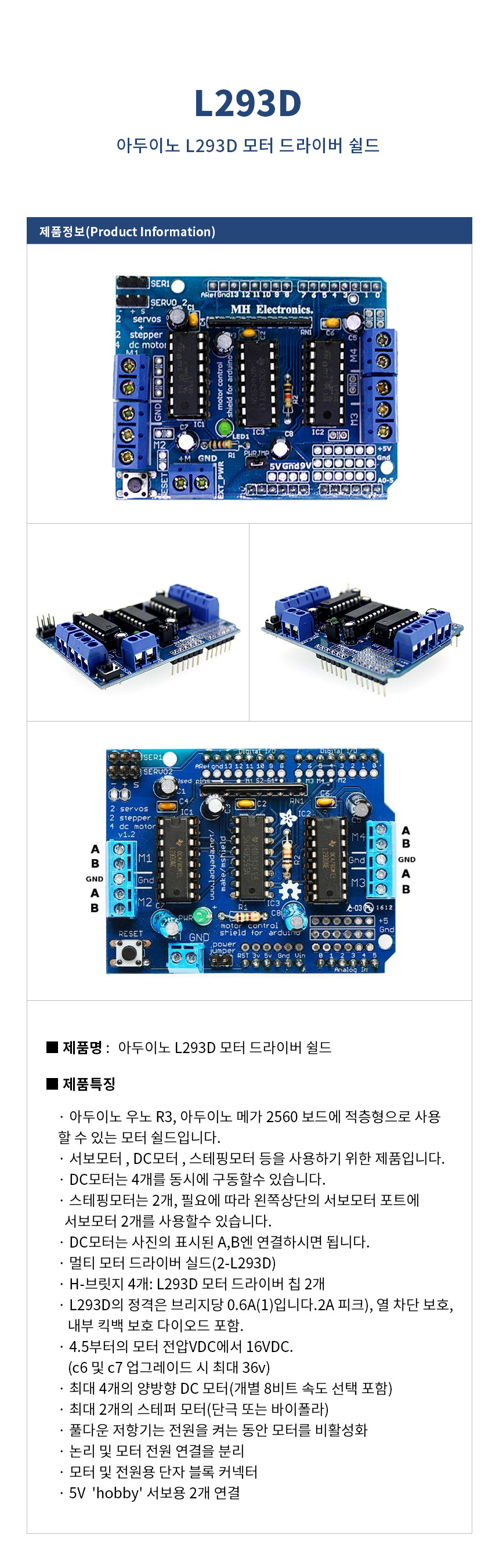

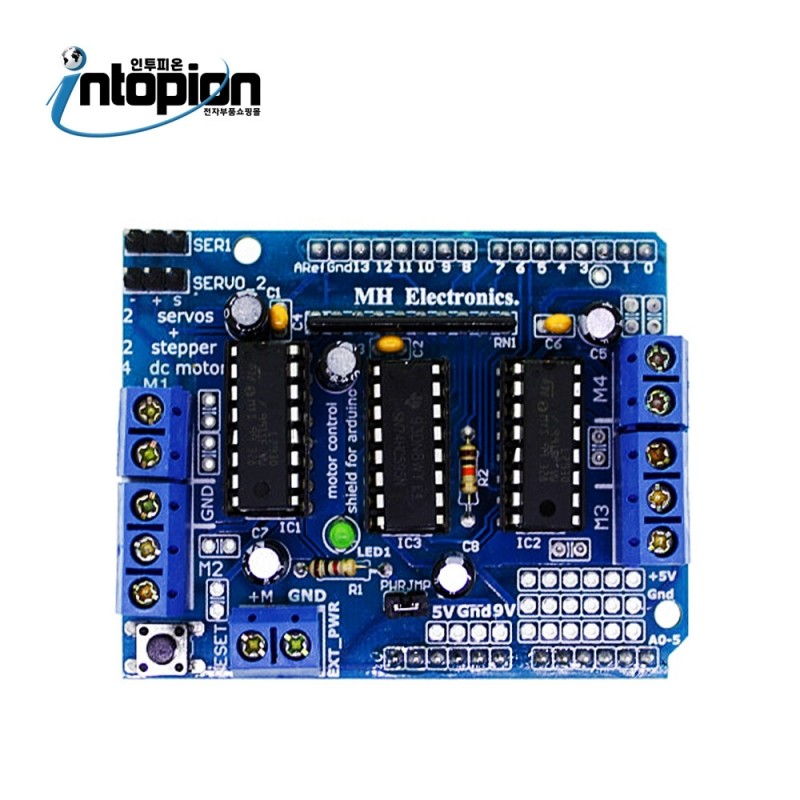

아두이노 우노 R3 , 아두이노 메가 2560 보드에 적층형으로 사용할수 있는 모터 쉴드입니다.
서보모터 , DC모터 , 스테핑모터 등을 사용하기 위한 제품입니다.
DC모터는 4개를 동시에 구동할수 있습니다.
스테핑모터는 2개, 필요에 따라 왼쪽상단의 서보모터 포트에 서보모터 2개를 사용할수 있습니다.
DC모터는 아래의 표시된 A,B엔 연결하시면 됩니다.
스펙정리
Multi-Motor Driver Shield(2-L293D)
Four H-Bridges : Two L293D Motor driver chips
L293D is rated at 0.6A per bridge(1.2A peak) with thermal shutdown protection,internal kickback protection diodes.
Motor Voltages from 4.5VDC to 16VDC.(Up to 36v if c6 and c7 are upgraded)
Up to 4 bi-directional DC motors with individual 8-bit speed selection(256 speeds)
Up to 2 stepper motors (Unipolar or Bipoalr)
Pull down resistors keep motors disabed during power-up
Separate logic and motor power connections
Terminal block connetctors for motors and power
2 connections for 5V 'hobby' servos
