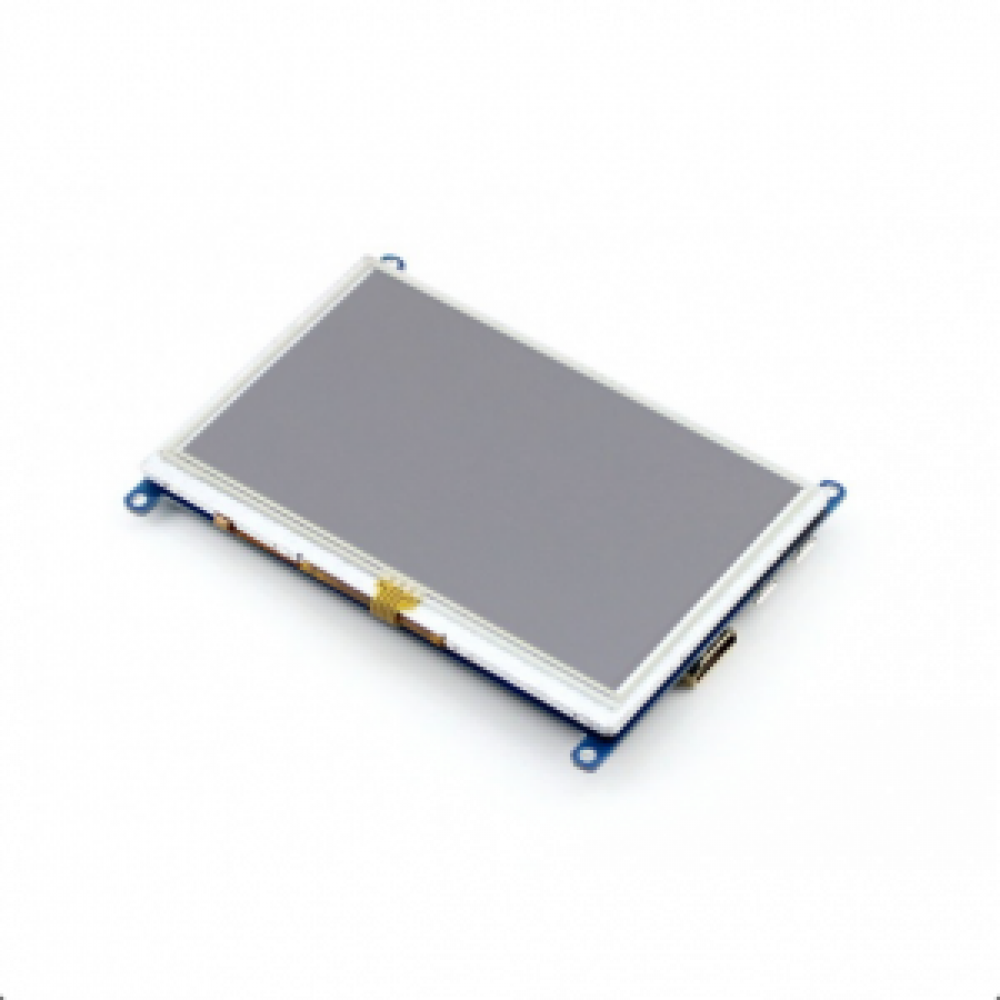

5 inch Resistive Touch Screen LCD, HDMI interface, supports various systems
Features
- 800×480 high resolution
- Resistive touch control
- Supports Raspberry Pi
- Supports Banana Pi / Banana Pro, comes with Lubuntu, Raspbian images
- Supports BB Black, comes with Angstrom image
- For other mini-PCs, driver is required and should be developed by users
- Not only for mini-PCs, it can work as a computer monitor just like any other general HDMI screen
- HDMI interface for displaying, USB interface for touch control
- Back light control to lower power consumption
Note: to use the LCD with following mini-PCs, additional cables are required and should be purchased separately:
Raspberry Pi Zero: HDMI cable, USB-type-A-receptacle-to-Micro-B-plug-cable
BB Black: HDMI cable
Rev1.1:
- For the Raspberry Pi, Raspbian/Ubuntu driver is required
- When work as a computer monitor, touch function is unavailable
Rev2.1 New Features:
- Standard HID protocol, easy to be integrated into your system
- For the Raspberry Pi, supports Raspbian, Ubuntu, single touch, and driver free
* 윈도우 OS로 사용하실려고 하시는 분들께서는 이 제품을 추천드리지 않습니다.
Photos
External Dimension
Development Resources
Wiki : www.waveshare.com/wiki/5inch_HDMI_LCD_(B)
FAQ
- Why the LCD doesn't work with my Raspbian?
- To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.
However, for the first testing, you may want to use our provided image directly. - Why the LCD still doesn't work with the Waveshare provided image?
- Make sure the hardware connection is correct and connects fine.
Make sure the image in TF card is burnt correctly.
The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact. - Which power supply should I use?
- It is strongly recommended to use a stand-alone 5V/2A power adapter, because the PC's USB port might have not enough power to support the Pi and LCD.
For more info, please check the wiki page.
Anti-Piracy
Since the first-generation Raspberry Pi released, Waveshare has been working on designing, developing, and producing various fantastic touch LCDs for the Pi. Unfortunately, there are quite a few pirated/knock-off products in the market. They're usually some poor copies of our early hardware revisions, and comes with none support service.
To avoid becoming a victim of pirated products, please pay attention to the following features when purchasing:
(Click to enlarge)
PACKAGE CONTENT
Weight: 0.198 kg
- 5inch HDMI LCD (B) x 1
- HDMI cable x 1
- Touch pen x 1
- USB type A plug to micro B plug cable x 1
- RPi LCD screws pack (4pcs) x 1
