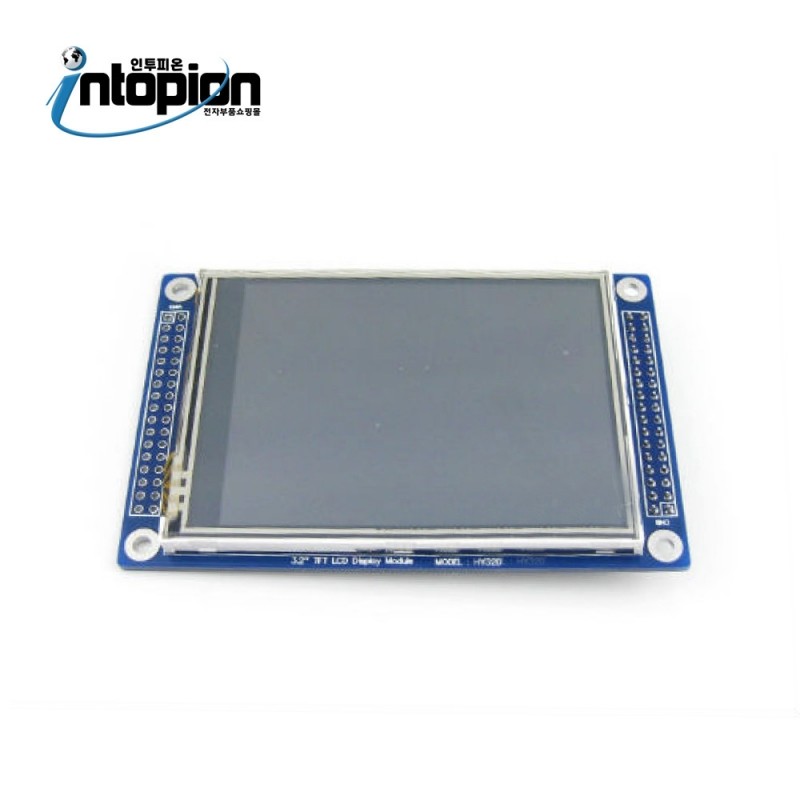

LCD Controller | ILI9325 |
---|---|
Touch Screen Controller | XPT2046 |
LCD Type | TFT |
LCD Interface | 16-bit parallel |
Touch Screen Interface | SPI |
Backlight | LED |
Colors | 65536 |
Resolution | 320*240 DOTS |
Note : this product should work with MCUs with 2.2V~3.6V IO voltage ONLY.
PIN NO. | SYMBOL | DESCRIPTION | FUNCTION |
---|---|---|---|
1 | 5V | 5V power supply | When powered from 5V supply, Pin 1 & Pin 2 as power input, Pin 33 & Pin 34 provide 3.3V output. |
2 | GND | Ground | GND |
3 | D0 | Data pin | D0-D15 |
4 | D1 | ||
5 | D2 | ||
6 | D3 | ||
7 | D4 | ||
8 | D5 | ||
9 | D6 | ||
10 | D7 | ||
11 | D8 | ||
12 | D9 | ||
13 | D10 | ||
14 | D11 | ||
