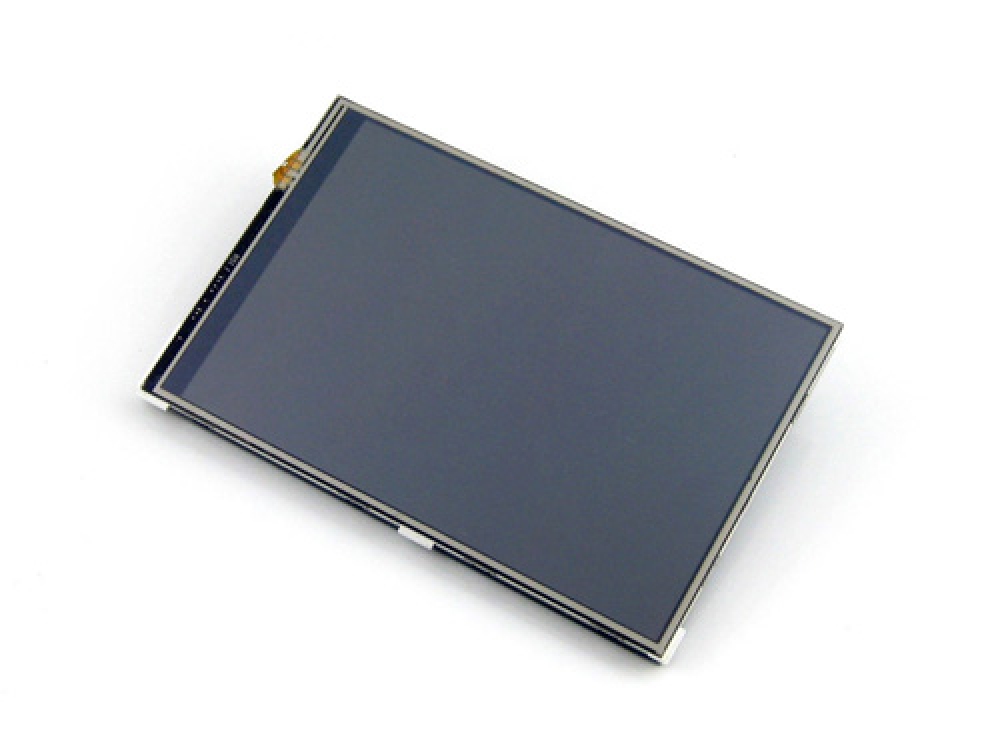

LCD Type | TFT |
---|---|
LCD Interface | SPI |
Touch Screen Type | Resistive |
Touch Screen Controller | XPT2046 |
Colors | 65536 |
Backlight | LED |
Resolution | 320*480 (Pixel) |
Aspect Ratio | 8:5 |
Power Consumption | TBD |
Backlight Current | TBD |
Operating Temp. (℃) | TBD |
PIN NO. | SYMBOL | DESCRIPTION |
---|---|---|
1, 17 | 3.3V | Power positive (3.3V power input) |
2, 4 | 5V | Power positive (5V power input) |
3, 5, 7, 8, 10, 12, 13, 15, 16 | NC | NC |
