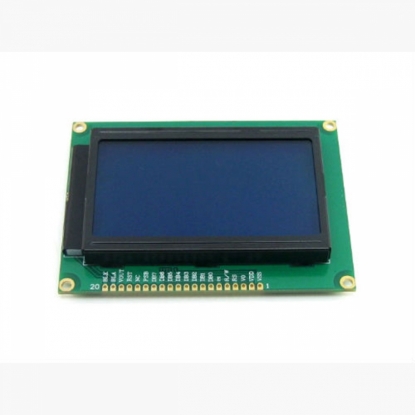

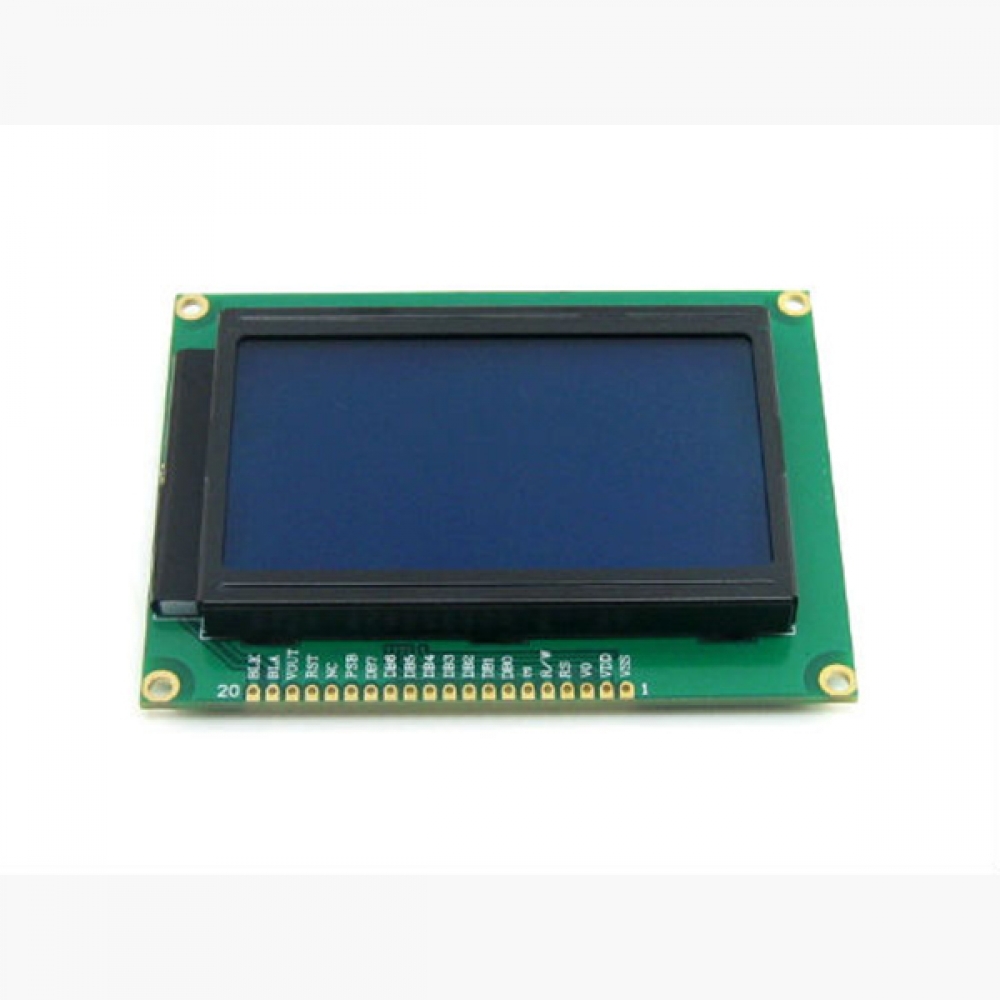

Display construction | 128*64 DOTS |
---|---|
Display mode | TN/STN |
Display type | Positive Transflective |
Backlight | LED, 5.0V |
Viewing direction | 6 o'clock |
Operating temperature | Indoor |
Driving voltage | Single power |
Driving method | 1/33 duty,1/6 bias |
Type | COB (Chip On Board) |
Number of data line | 8-bit parallel |
Connector | Pin / ZEBRA |
Driver IC | ST7920 / ST7921 |
---|---|
Interface | Parallel / SPI |
Backlight | Blue |
Character Color | White |
Character Set | ASCII |
Dimension | 93 * 70 * 13.5 |
PIN NO. | SYMBOL | DESCRIPTION | FUNCTION |
---|---|---|---|
1 | VSS | Ground | 0V (GND) |
2 | VDD | Power Supply For Logic Circuit | +3.3V |
3 | V0 | LCD Contrast Adjustment | |
4 | RS or CS | Parallel Mode: Instruction/Data Register Selection Serial Mode: |
