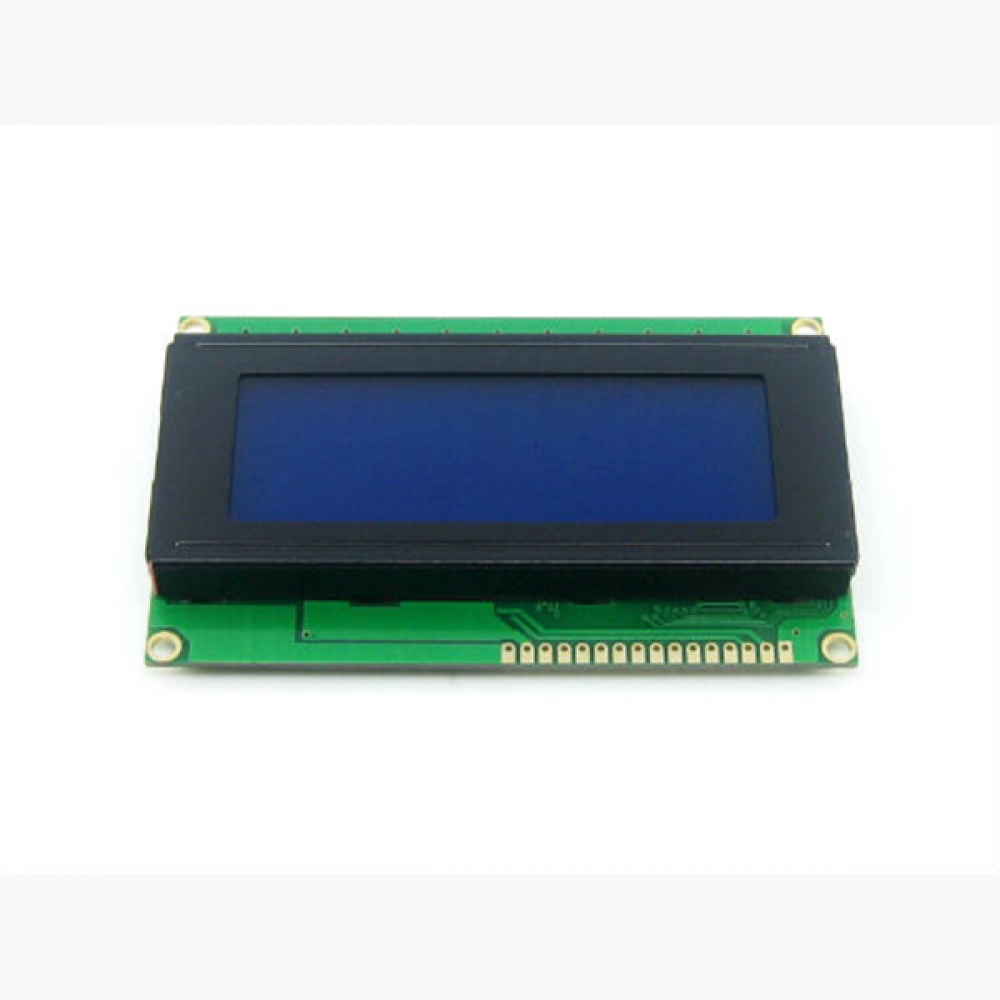

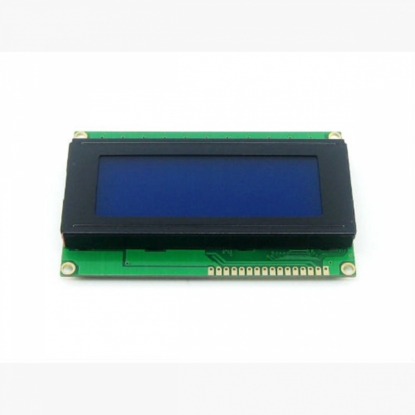

Display construction | 20 Characters * 4 Lines |
---|---|
Display mode | TN/STN |
Display type | Positive Transflective |
Backlight | LED(B/5.0V) |
Viewing direction | 6 o'clock |
Operating temperature | Indoor |
Driving voltage | Single power |
Driving method | 1/16 duty,1/5 bias |
Type | COB (Chip On Board) |
Number of data line | 8-bit parallel |
Connector | Pin / ZEBRA |
Driver IC | KS0066 (compatible with HD44780) |
---|---|
Interface | Parallel |
Backlight | Blue |
Character Color | White |
Character Set | ASCII |
Dimension | 98 * 60 * 13.5 |
Note: We will ship the alternative A OR B randomly. There is no difference between them, except the brand.
PIN NO. | SYMBOL | DESCRIPTION | FUNCTION |
---|---|---|---|
1 | VSS |
