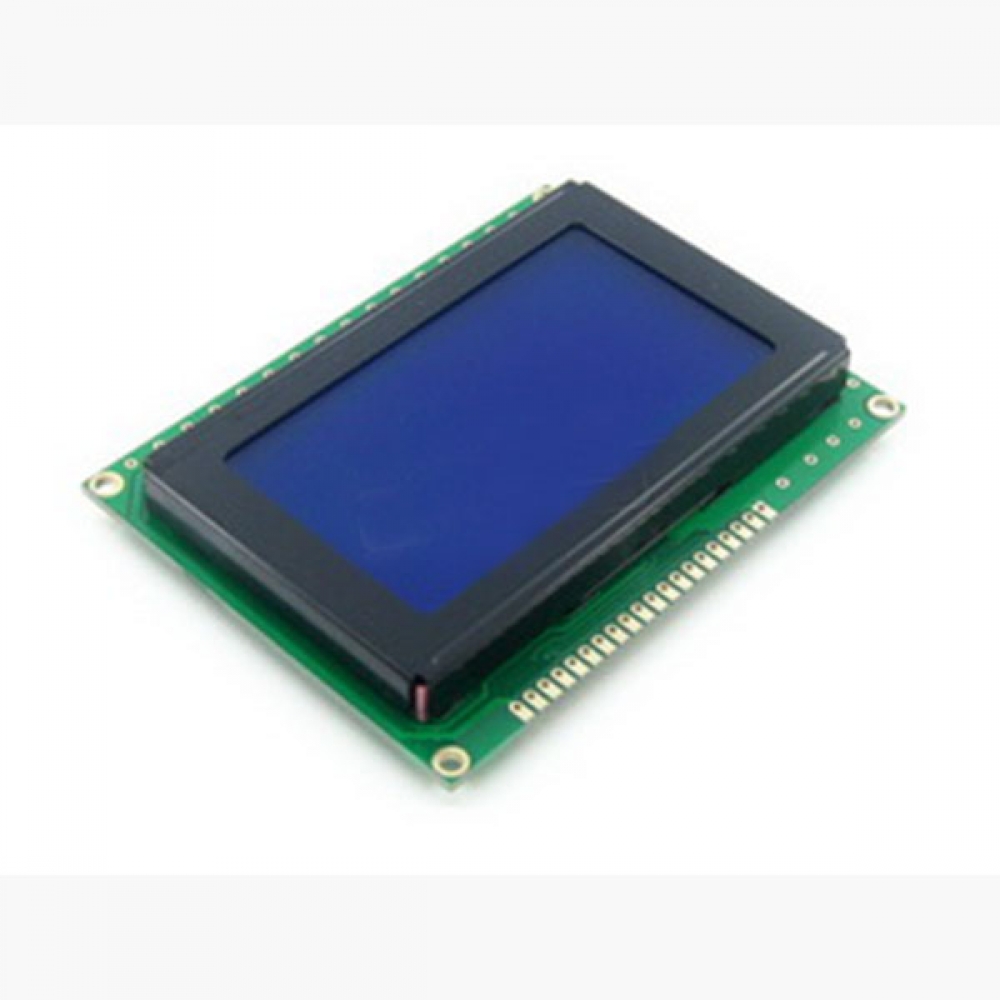

Display construction | 128*64 DOTS |
---|---|
Display mode | TN/STN |
Display type | Positive Transflective |
Backlight | VDD5.0V, Idd250mA |
Viewing direction | 6 o'clock |
Operating temperature | Indoor |
Driving voltage | Single power |
Driving method | 1/64 duty,1/9 bias, VOP10.5V, VDD5.0V |
Type | COB (Chip On Board) |
Number of data line | 8-bit parallel |
Connector | Pin / ZEBRA |
Driver IC | KS0107 / KS0108 / S6B0108 |
---|---|
Interface | Parallel |
Backlight | Blue |
Character Color | White |
Character Set | ASCII |
Dimension | 93 * 70 * 14 |
PIN NO. | SYMBOL | DESCRIPTION | FUNCTION |
---|---|---|---|
1 | VSS | Ground | 0V (GND) |
2 | VDD | Power Supply For Logic Circuit | +5V |
3 | V0 | LCD Contrast Adjustment / Operating Voltage For LCD | |
4 | RS | Instruction/Data Register Selection | RS = 0 : Instruction Register RS = 1 : Data Register |
5 |
