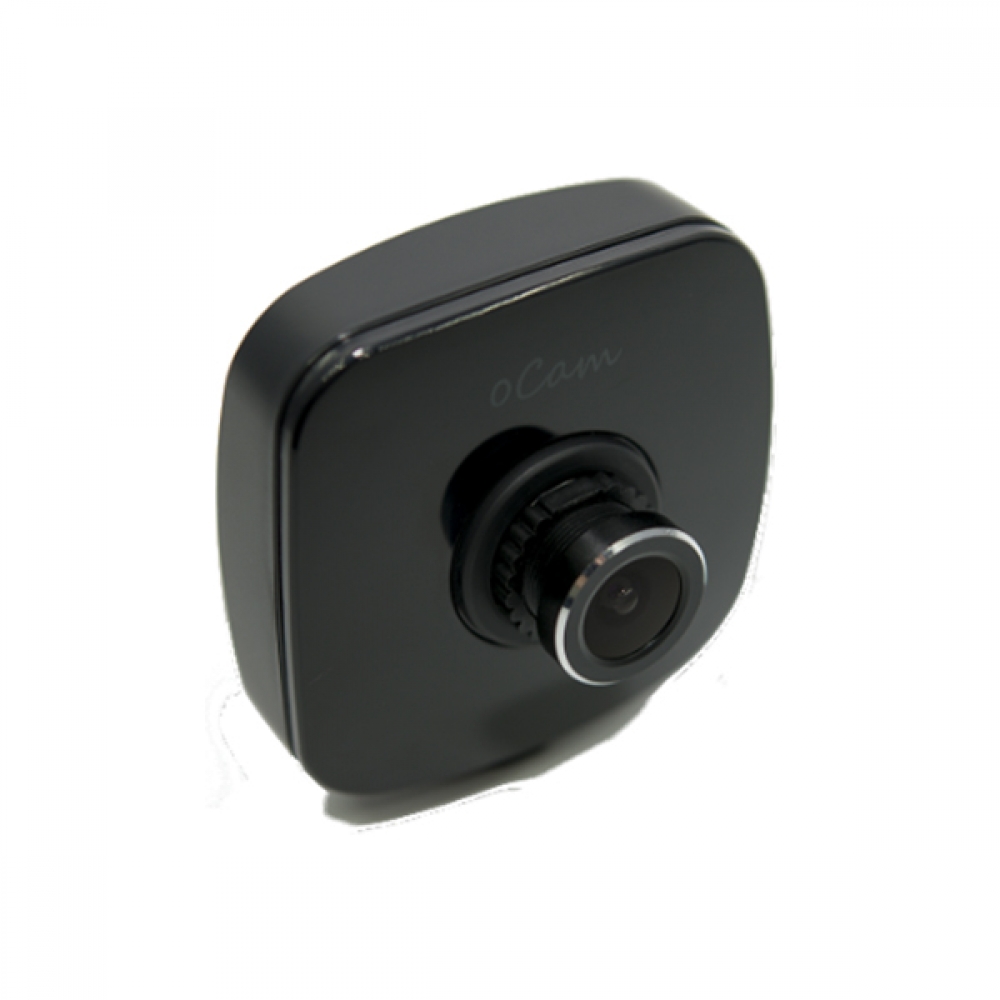

The oCam-2WRS-U is 2 mega pixel color camera with wide dynamic range (WDR) functionality to provide a superb image quality under various light conditions.
항목 | 내용 |
---|---|
센서 | Sony IMX290 CMOS image sensor |
센서 크기 | 1/3 inch |
인터페이스 | USB 3.0 Super-Speed |
렌즈 | Standard M12 Lens with focal length of 3.6mm |
지원 OS | Windows 10, Linux, Plug-and play by UVC(USB Video Class) Protocol |
전원 | USB Bus Power |
동작 온도 | 0°C ~ + 70°C |
정격 | DC 5V/250mA |
셔터 | Rolling Shutter |
Field Of View(FOV) | 50˚(V) X 92.8˚(H) X 110˚(D) @ 1/2.9inch |
카메라 컨트롤 | WDR On/Off |
출력속도 및 지원 해상도 | 15fps, 30fps @1920x1080 |
무게 | 27 gram approx.(Including protective case) |
PCB 크기 | 39mm x 39mm(PCB) |
케이스 크기 | 49mm x 53mm x 20mm (Including Tripod Mount) |
